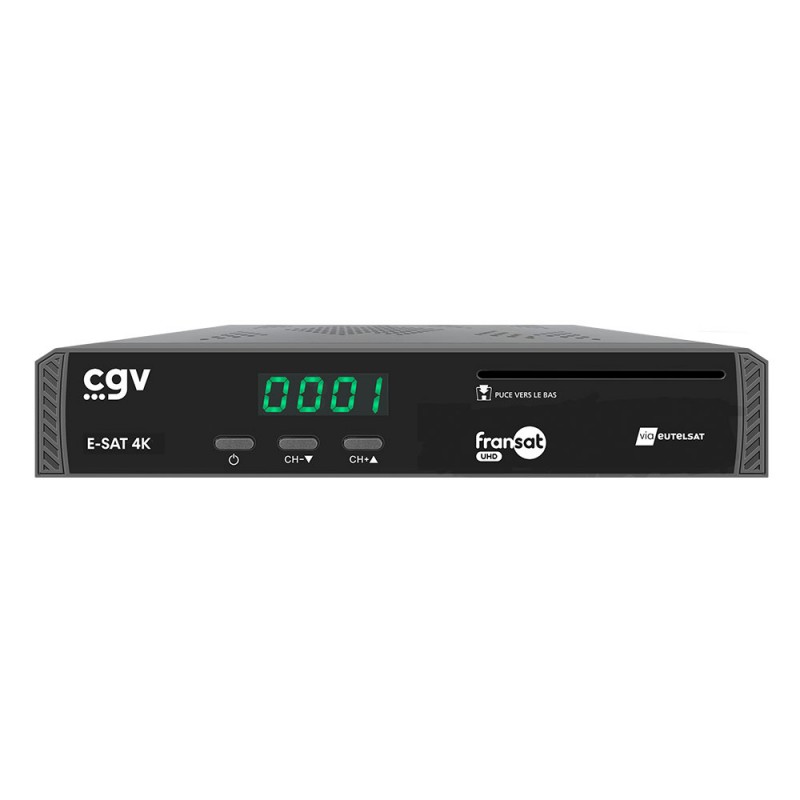

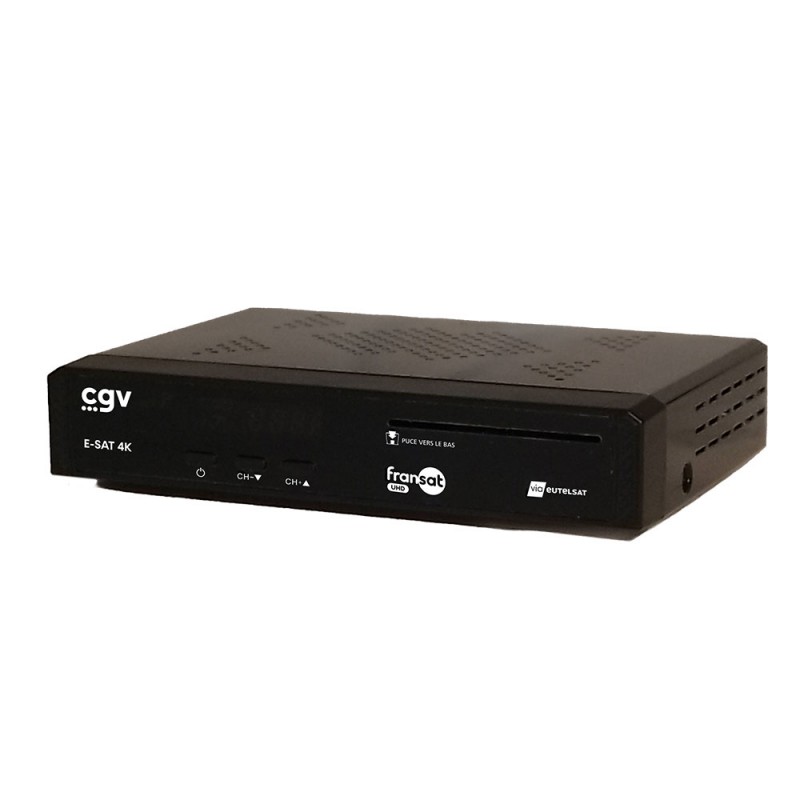

The CGV E-SAT 4K is the official Fransat Ultra High Definition satellite receiver, made in France by CGV. It picks up the free French TNT channels broadcast by Fransat from the Eutelsat 5 West B satellite at 5 degrees West, with no subscription and no monthly fee. It suits French households living in the UK, second home owners, and anyone who wants French television at home, in a caravan or in a motorhome.
Every unit we supply comes with a Fransat UHD viewing card in the box, plus a UK three pin power adaptor, so you can plug in and tune in without hunting for a travel plug. The card is valid for four years from the date it is first inserted into the receiver, and there is nothing to pay in between.
Why a UHD receiver, and why now
Fransat is moving its entire platform to the UHD and HEVC standard. Fransat will stop selling and renewing Fransat HD cards after 30 September 2026, which means an HD receiver can only keep running until its current card runs out. The E-SAT 4K is on the new standard from day one. It receives all the existing Fransat HD channels exactly as before, plus France 2 in 4K Ultra High Definition, with further UHD channels expected to follow. Buy this and you are set for the next generation rather than the last one.
Record in UHD and pause live television
Plug a USB hard drive into the port on the back and the E-SAT 4K becomes a recorder. You can record programmes in Ultra High Definition, pause and rewind live television, and set timers from the on screen guide. It runs on 12V, so the same box works in a caravan or motorhome without a converter.
Channels
Free French TNT via Fransat, including TF1, France 2, France 3, France 5, M6, Arte, Canal+ en clair, C8, W9, TMC, TFX, NRJ 12, LCP, France 4, BFM TV, CNews, CStar, Gulli, TF1 Séries Films, La chaîne L’Équipe, 6ter, RMC Story, RMC Découverte, Chérie 25, LCI and franceinfo, plus the 24 France 3 regional services, free thematic and local channels, and free radio.
Specifications
Standard
- DVB-S and DVB-S2 satellite reception
- HEVC (H.265) decoding
- Viaccess Orca conditional access
- Fransat UHD platform, Eutelsat 5 West B at 5 degrees West
Video
- HDMI output up to 2160p Ultra High Definition
- 4:3 and 16:9 aspect ratios
Audio
- Dolby Audio
- Dolby Digital AC3 5.1 compatible via the SPDIF coaxial output
Tuner
- LNB input 13/18V, 350mA
- DiSEqC 1.0 and 1.1 for multi satellite installations

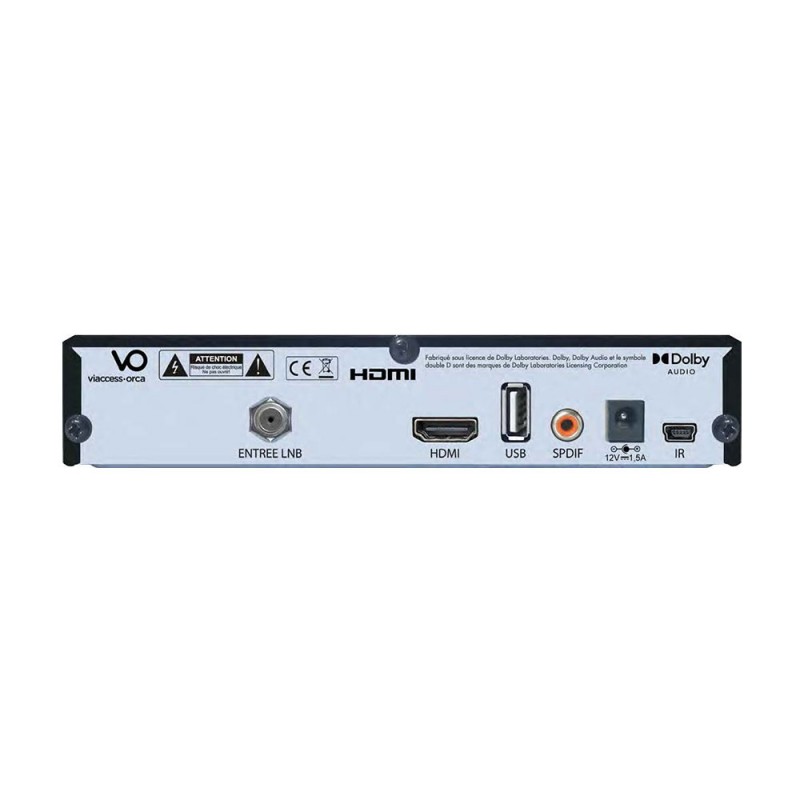

Connectics, all on the rear panel
- 1 x LNB IN (F connector)
- 1 x HDMI
- 1 x USB 2.0
- 1 x SPDIF coaxial digital audio
- 1 x 12V DC power input
- 1 x IR sensor input for an external infrared eye
User interface
- On screen programme guide
- Up to 7 favourite channel lists
- Parental control
Multimedia
- USB recording of UHD and HD programmes to an external drive
- Timeshift, pause and rewind live television
- Media playback from USB
Various
- 12V DC 1.5A, suitable for caravan and motorhome use
- Approximately 7W in use, under 1W in standby
- Dimensions 165 x 114 x 34 mm
- Weight 292 g
- Manufacturer reference CGV 70157
- Manufacturer warranty 2 years
- EAN 3322107015709
Package content
- CGV E-SAT 4K receiver
- Fransat UHD viewing card, valid 4 years from first insertion

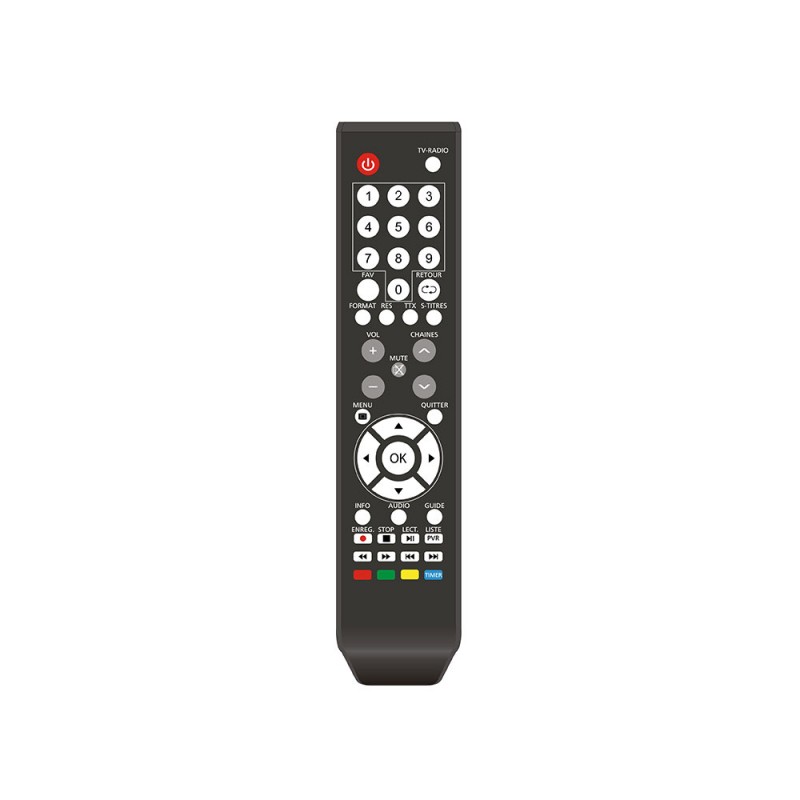

- Remote control with 2 x AAA batteries
- UK power adaptor
- User manual
Your dish
Fransat broadcasts from 5 degrees West, which is a different satellite position from the Astra 19.2 East used by TNTSAT. Your dish needs to be aligned to Eutelsat 5 West B. A 60cm Zone 2 mesh dish is the right size for Fransat reception in the UK. If you are not sure what you already have, call us on 01622 535870 before you order and we will talk it through.
We install too
If you would rather not go up a ladder, our own engineers cover London and Kent. Add the installation service to your order, or call us on 01622 535870 and we will book you in.
